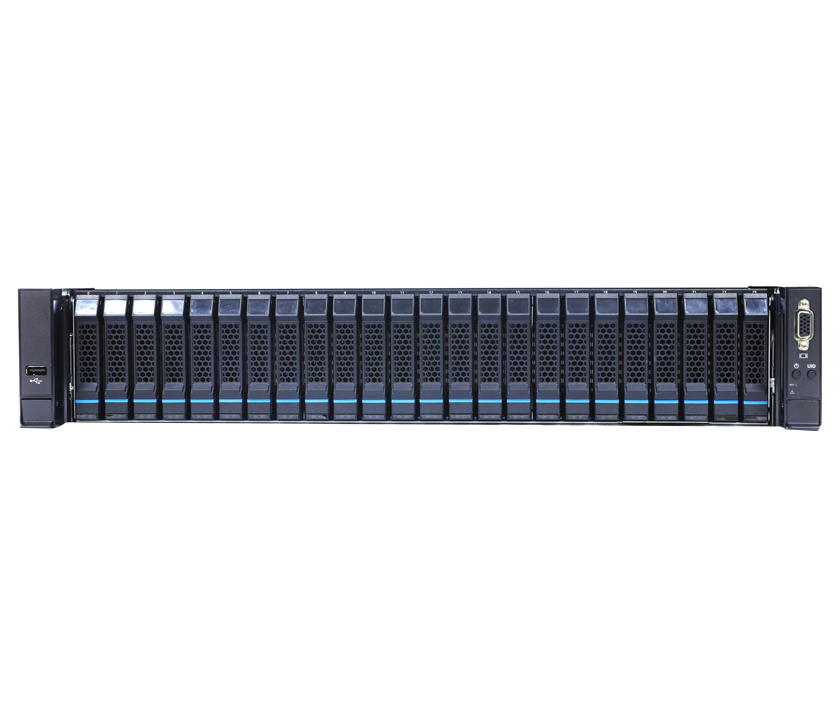

2U Mt. Jade 2S
Maximum balance of performance and scalability for a diverse range of workloads
2U Mt. Jade 2-socket provides a mix of features to maximise performance and scalability to meet a diverse set of workloads. Maximise application performance with the optimal mix of storage and compute power in a 2U 2-socket server.
Overview | |
Description | 2U Dual Socket Rack Server |
Partner(s) | Wiwynn |
Processor | |
CPU | Ampere® Altra® Max Series Processor, 96 to 128 Cores Ampere® Altra® Series Processor, 32 to 80 Cores |
Max Socket TDP | Up to 250W |
Chassis & Power | |
Form Factor | 2U |
Power | Redundant 2000W with PMBus 1.2 Support |
Thermal Fan | 6x 6056mm |
Memory, Expansion & Storage | |
Memory | 32 DIMMs (8-channels 2DPC per CPU) Up to DDR4-3200 Up to 8TB |
Storage Bays | 24x SFF U.2 NVMe |
On-board Storage | Dual PCIe Gen4 x4, NGFF 22110/2280 |
Host/CPU Network | None |
Cabled PCIe | x8 TA-1002 PCIe Gen4 (Sliver) |
PCIe Gen4 Riser Configs | Riser1: PCIe Gen4 2x x8 + x16 (FHHL or LP) Riser2: PCIe Gen4 3x x8 (FHHL or LP) Riser3: PCIe Gen4 x8 (LP) + x16 (LP) |
OCP Slots | OCP 3.0 SFF - PCIe Gen4 x16 |
FHFL Card Support | None |
BMC | |
BMC Support | AST2500 |
BMC Network | Realtek RTL8211E 1GbE |
Software | |
Firmware Support | UEFI: AMI AptioV BMC: AMI MegaRAC |
Open Firmware Support | EDK II & OpenBMC reference code available |
