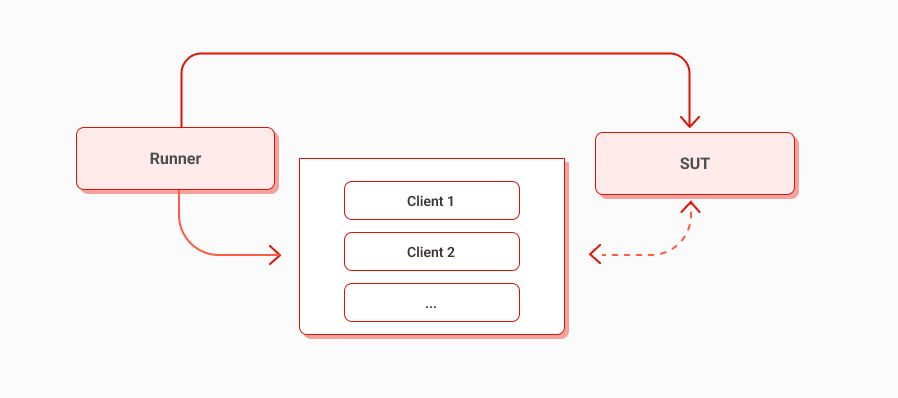

APB harness requires a “Runner” which orchestrates one or more client workloads against a dedicated System Under Test (SUT).

APB setup requires dedicated machines shown below.

• Runner (orchestrator): The Runner is the system where APB is deployed, responsible for environment setup, starting the benchmark, controlling test parameters, and coordinating benchmark phases.
• Client/s (load generators): The benchmark provisions, sets up one or more clients (Client1, Client2, …) as per configuration file. Clients and load generator applications will run on this system.
• SUT (System Under Test): The SUT is the target server or platform under evaluation where the application to be benchmarked is deployed and configured.

EITHER

A) Use the setup script at APB repository’s root directory $ source setup.sh

• The setup script will:
  • Detect if Python >=3.11.x is installed
  • Create a virtual environment
  • Install all dependencies and requirements for APB
  • Start the virtual environment

OR

B) Setup APB Manually with a Virtual Environment

Copy
$ sudo dnf install python3.12
$ python3.12 -m venv venv
$ source venv/bin/activate
$ python3.12 -m pip install --upgrade pip
$ pip install -r requirements.txt

Ensure the virtual environment is active and run the benchmark command from the root of the APB project directory.

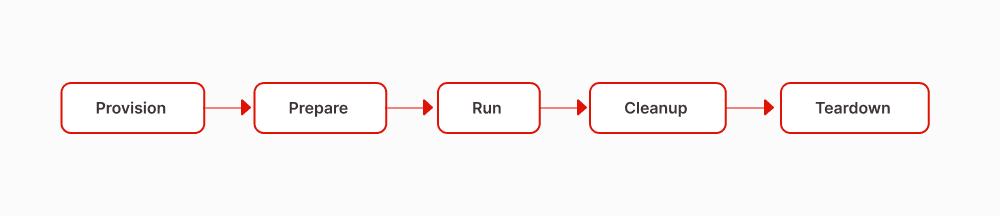

The benchmark follows five phases as shown below.

Command to view all available flags related to a benchmark, e.g.

Copy
./pkb.py --helpmatch=ampere | grep -A 2 <benchmark_name>

Command to run, e.g.

Copy
./pkb.py --benchmarks=<benchmark_name> --benchmark_config_file=<path_to_config>

• The benchmark name must match the name defined in the YAML config
• The path to the configuration file in the run command can be relative or absolute
• Each YAML config file represents a workload configuration for a certain system(s) and environment

Additional useful flags:

• To execute a benchmark run n times, use the iterations flag as --run_stage_iterations=
• To execute benchmark steps, use the stage flag as --run_stage=<provision,prepare,run,cleanup,teardown>

Example: To setup benchmark in a standard manner, one can use APB prepare stage to setup and run stage to test independently.

• Pass -run_stage=provision,prepare
• Note generated run_uri
• Use --run_stage=run --run_uri=<run_uri> to repeat testing for manual debug purposes
• Use --run_stage=cleanup,teardown --run_uri<run_uri> to cleanup and teardown benchmark

APB generates a result directory named as the run_uri at temporary location of runner system (/tmp/perfkitbenchmarker/runs). The results directory contains:

• Performance benchmark metrics such as throughput, latencies in JSON, CSV formats.
• System and benchmark configurations for traceability.
• APB run logs for debugging and tracking purposes.

LLMs are often benchmarked for accuracy, but in production the important considerations are speed and efficiency – how fast responses arrive i.e latency (Time to First Token – TTFT, Time per Output Token – TPOT, etc.) and how much the server can process/generate i.e. throughput (tokens generated per second).

LLMs have various parameters and knobs which form an interplay affecting throughput and latencies metrics. For a given prompt size, output response size, when we increase batch size, we increase throughput because the processor can process multiple prompt sequences in parallel. However, batching can increase TTFT, and tail latency can worsen depending on scheduling and load.

APB enables a standard and methodical approach to benchmarking inference performance for a model using llama.cpp. It offers a simple but reproducible way to configure, tune workload, benchmark with input/output sizes, batch sizes, number of parallel inference processes, and observe how it drives and affects throughput and latency.

Once APB is cloned and setup locally, update LLM workload YAML at path “ampere/pkb/configs”.

• Update server flags in it as below:
  • ip_address is the SUT system IP
  • user_name would be the one with which you are accessing the SUT, example - root.
  • ssh_private_key is the path of your ssh private key on runner system

Copy
ampere_llama_benchmark_model_names: ["llama-3.1-8B-Q8R16.gguf"]
ampere_llama_models_url: 'https://huggingface.co/AmpereComputing/llama-3.1-8b-gguf/resolve/main'


ampere_docker_image: 'llama.cpp'
ampere_docker_image_repo: 'amperecomputingai'
ampere_docker_image_version: '3.4.2-ampereone'

• Llama.cpp configurations of threads (compute cores) per model, batch size (no. of parallel prompts), prompt size and output tokens are set using below flags

Copy
ampere_llama_benchmark_threads_per_process: [6]
ampere_llama_benchmark_batch_size: [64]
ampere_llama_benchmark_prompt_size: [512]
ampere_llama_benchmark_output_tokens: 256
ampere_llama_benchmark_threads_range: '0-191'

• Run the Llama Benchmark as:

Copy
./pkb.py --benchmarks=ampere_llama_benchmark --benchmark_config_file=ampere/pkb/configs/example_llm_on_AmpereOneM.yml

Results of benchmark run are generated in /tmp/perfkitbenchmarker/runs. On a successful run, we see below result at the end. This run uri identified directory includes run logs, results in JSON format perfkitbenchmarker_results.json and a CSV results file for LLM workloads.

As part of results, LLM benchmark outputs metrics such as prompt processing and token generation throughputs, Time to First Token, Time per Output Token and End to End latencies.

Copy
2026-06-11 08:25:48,189 ba74c8e8 MainThread pkb.py:1649 INFO     Benchmark run statuses:

----------------------------------------------------------------------------

Name                    UID                      Status     Failed Substatus

----------------------------------------------------------------------------

ampere_llama_benchmark  ampere_llama_benchmark0  SUCCEEDED

----------------------------------------------------------------------------

Success rate: 100.00% (1/1)

2026-06-11 08:25:48,189 ba74c8e8 MainThread pkb.py:1651 INFO     Complete logs can be found at: /tmp/perfkitbenchmarker/runs/ba74c8e8/pkb.log

2026-06-11 08:25:48,189 ba74c8e8 MainThread pkb.py:1652 INFO     Completion statuses can be found at: /tmp/perfkitbenchmarker/runs/ba74c8e8/completion_statuses.json

2026-06-11 08:25:48,189 ba74c8e8 MainThread pkb.py:1658 INFO     To run again with this setup, please use --run_uri=ba74c8e8

2026-06-11 08:25:48,190 ba74c8e8 MainThread pkb.py:1686 INFO     PKB exiting with return_code 0

A disciplined benchmarking workflow is critical when multiple teams need to validate performance claims with confidence. Ampere Perfkit Benchmarker (APB) provides a repeatable, infrastructure and configuration-aware, and automation-first approach to measuring ML/LLM and cloud-native workload performance.

While working with customers and partners, this translates directly into practical benefits - it supports customer validation of ‘what was measured and why’, enables technical alignment by standardizing workload configs, tunings, assumptions, and environments across teams, and strengthens stakeholder engagement by turning performance discussion into transparent, shareable results. By making performance evaluation reproducible, APB helps teams move accurately and faster from performance analysis to data-driven decisions with less ambiguity.
